Product Description
|

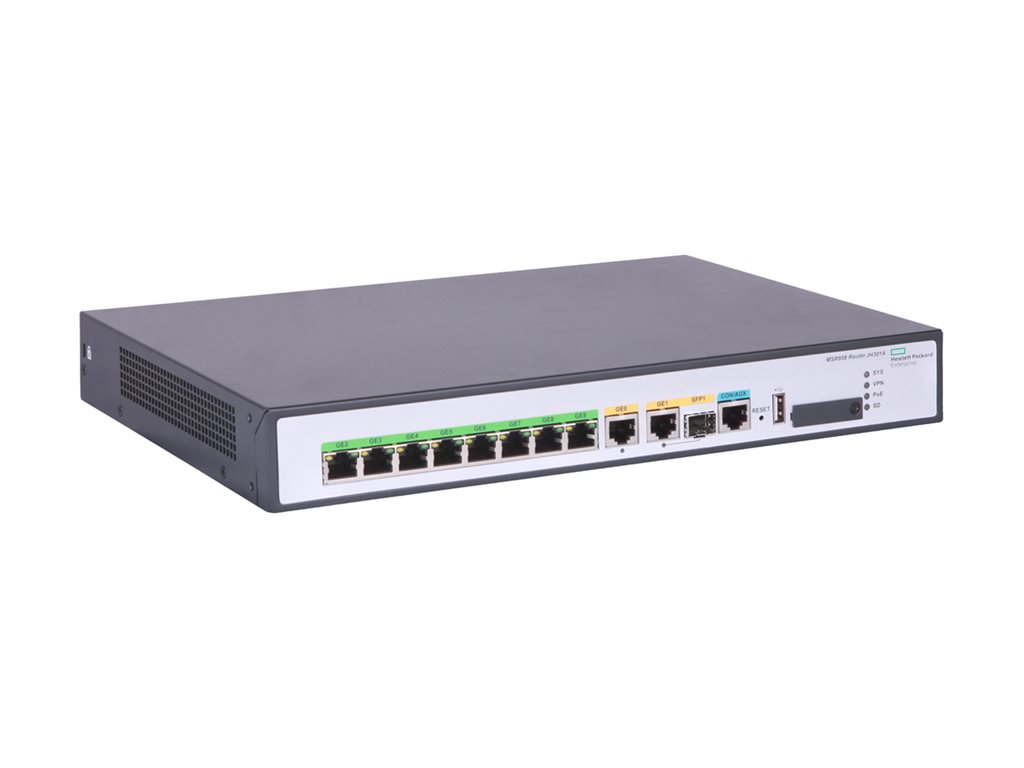

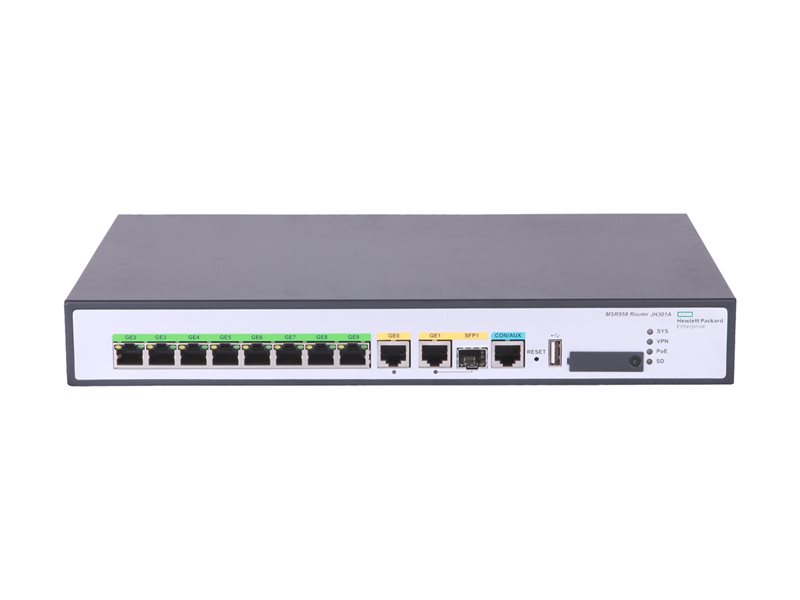

HPE FlexNetwork MSR958 PoE - router - rack-mountable
|
|
Device Type
|
Router - 8-port switch (integrated)
|
|
Enclosure Type
|
Rack-mountable - 1U
|
|
WAN Ports Qty
|
2
|
|
Data Link Protocol
|
Ethernet, Fast Ethernet, Gigabit Ethernet
|
|
Data Transfer Rate
|
1 Gbps
|
|
Performance
|
Throughput (64-byte packet size): up to 300 Kpps
|
|
Capacity
|
VPN tunnels: 100 ¦ IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000 ¦ IPv4 forwarding table entries: 10000 ¦ IPv6 forwarding table entries: 5000
|
|
Network / Transport Protocol
|
TCP/IP, UDP/IP, L2TP, RSVP, APPN, NTP, ICMP/IP, IPSec, AAL5, ARP, FTP, DHCP, PAP, SFTP
|
|
Routing Protocol
|
OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, IGMPv3, GRE, OSPFv3, Bidirectional PIM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, RIPng, BGP-4+, MPLS, CIDR, BGP+, URPF
|
|
Remote Management Protocol
|
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, CLI
|
|
Features
|
Layer 3 switching, layer 2 switching, NAT support, VPN support, VLAN support, traffic shaping, port mirroring, IPS, WFQ, WRED, sFlow, STP support, RSTP support, MSTP support, tunneling, ACL support, QoS, CAR, LFI, PoE+, URPF, DHCP relay, MIB, port isolation, packet storm protection, CoS, Loopback, DVPN, MBGP, EtherIP, ToS, GDVPN, RED, ICMP Router Discovery Protocol (IRDP), MIB II, SSM
|
|
Compliant Standards
|
IEEE 802.2, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
|
|
Power
|
AC 100-264 V
|
|
Dimensions (WxDxH)
|
10.5 in x 6.3 in x 1.7 in
|
|
Weight
|
2.2 lbs
|
|
Manufacturer Warranty
|
1-year warranty
|
|
Device Type
|
Router - 8-port switch (integrated)
|
|
Enclosure Type
|
Rack-mountable - 1U
|
|
Connectivity Technology
|
Wired
|
|
Data Link Protocol
|
Ethernet, Fast Ethernet, Gigabit Ethernet
|
|
Data Transfer Rate
|
1 Gbps
|
|
Performance
|
Throughput (64-byte packet size): up to 300 Kpps
|
|
Capacity
|
VPN tunnels: 100 ¦ IPv4 routing table entries: 10000 ¦ IPv6 routing table entries: 5000 ¦ IPv4 forwarding table entries: 10000 ¦ IPv6 forwarding table entries: 5000
|
|
Network / Transport Protocol
|
TCP/IP, UDP/IP, L2TP, RSVP, APPN, NTP, ICMP/IP, IPSec, AAL5, ARP, FTP, DHCP, PAP, SFTP
|
|
Routing Protocol
|
OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, IGMPv3, GRE, OSPFv3, Bidirectional PIM, MSDP, static IPv4 routing, static IPv6 routing, ECMP, RIPng, BGP-4+, MPLS, CIDR, BGP+, URPF
|
|
Remote Management Protocol
|
SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, CLI
|
|
Encryption Algorithm
|
DES, Triple DES, MD5, AES, TLS, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES
|
|
Authentication Method
|
Secure Shell (SSH), RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2)
|
|
Features
|
Layer 3 switching, layer 2 switching, NAT support, VPN support, VLAN support, traffic shaping, port mirroring, IPS, WFQ, WRED, sFlow, STP support, RSTP support, MSTP support, tunneling, ACL support, QoS, CAR, LFI, PoE+, URPF, DHCP relay, MIB, port isolation, packet storm protection, CoS, Loopback, DVPN, MBGP, EtherIP, ToS, GDVPN, RED, ICMP Router Discovery Protocol (IRDP), MIB II, SSM
|
|
Compliant Standards
|
IEEE 802.2, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, ETSI, EN55022, ICES-003 Class B, FCC Part 68 / CS03 Issue 8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FDA, FCC CFR47 Part 15 B, EN 60825-1, X.509, AS/NZS 60950, ANSI C63.4, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN 61000-4-11:2004, EMC 2004/108/EC, EN 300 386 V1.3.3, AS/NZS CISPR 22 Class B, TIA-968-B, CAN/CSA-C22.2 No. 60950-1, EN 55024:1998+A1:2001+A2:2003
|
|
Processor
|
1 x Marvell A370 800 MHz
|
|
RAM
|
1 GB DDR3 SDRAM
|
|
Flash Memory
|
256 MB
|
|
Status Indicators
|
System, VPN
|
