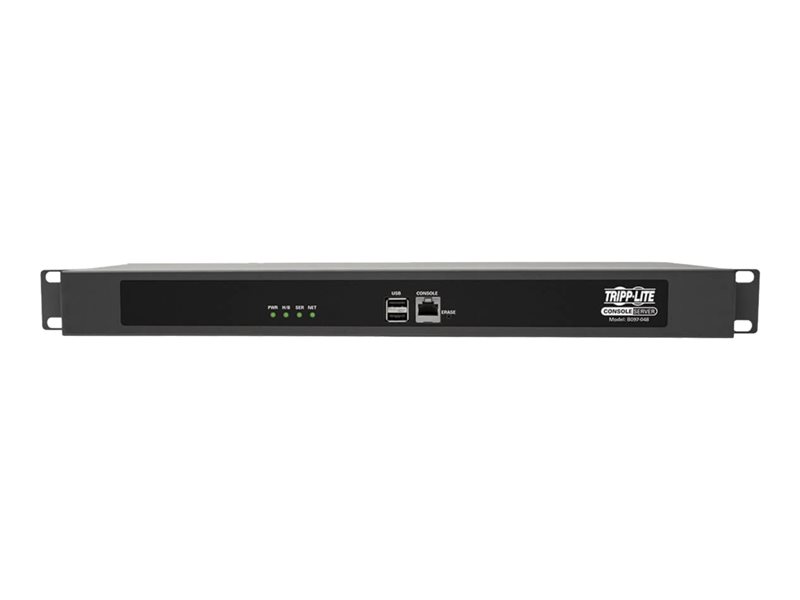

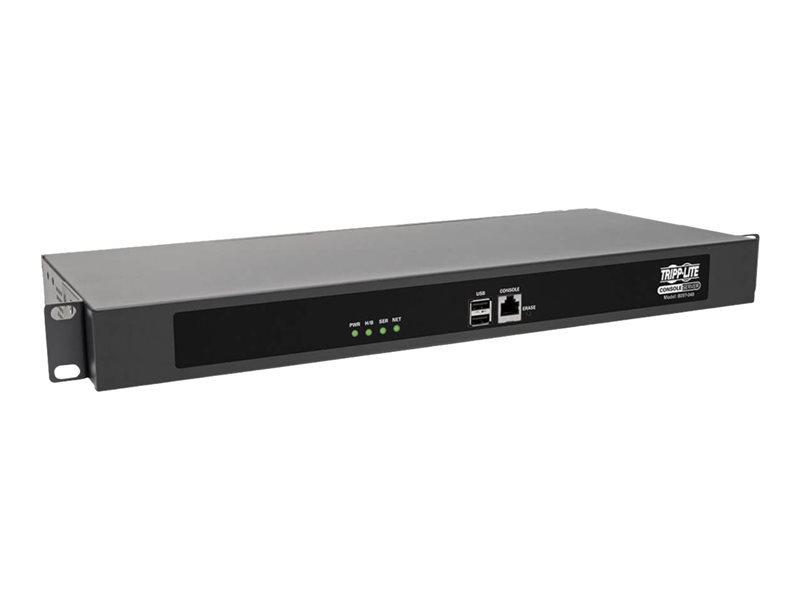

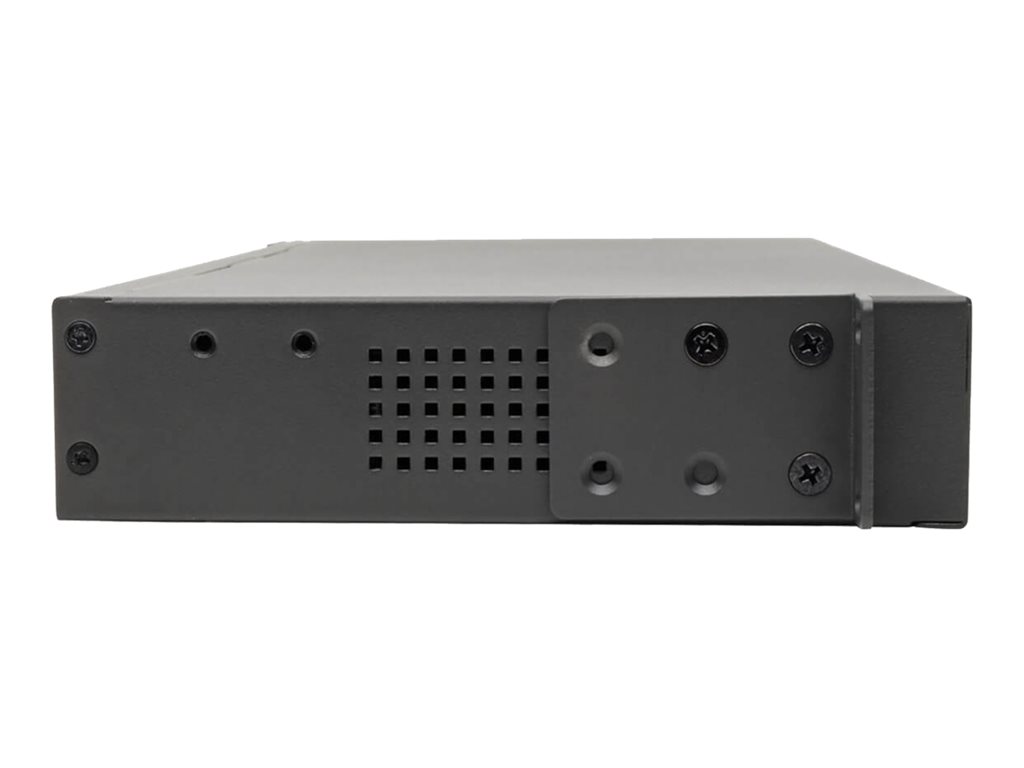

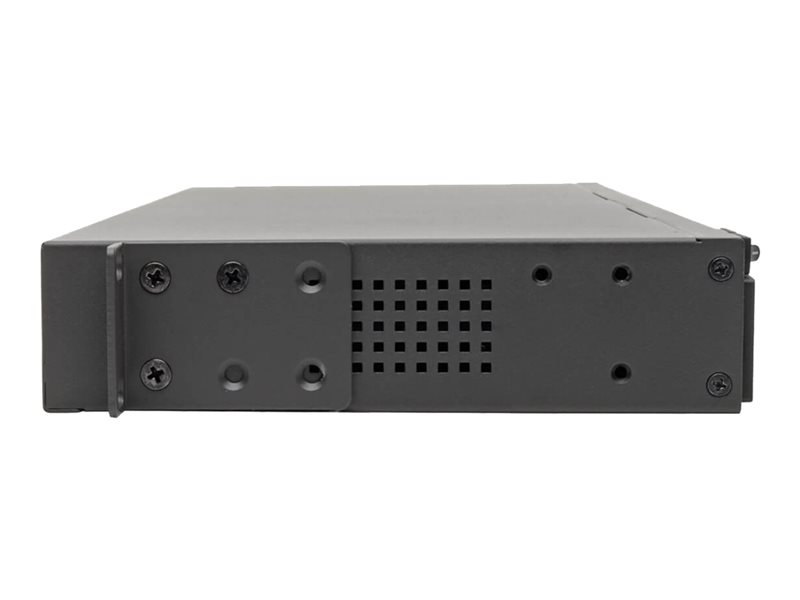

Tripp Lite 48-Port Serial Console Server, USB Ports (2)
- Back to Results
Main Specifications
|
---|
Product Description
|
Tripp Lite 48-Port Serial Console Server, USB Ports (2) - Dual GbE NIC, 4 Gb Flash, Desktop/1U Rack, CE - console server - TAA Compliant
|
Device Type
|
Console server
|
Form Factor
|
Rack-mountable - 1U
|
Flash Memory
|
4 GB
|
Ports Qty
|
48
|
Data Link Protocol
|
Gigabit Ethernet, RS-232
|
Included Accessories
|
6 rubber feet, rack mount kit
|
Power
|
AC 100 - 240 V
|
Power Redundancy
|
Yes
|
TAA Compliant
|
Yes
|
Dimensions (WxDxH)
|
17.3 in x 6.9 in x 1.8 in
|
Weight
|
7.01 lbs
|
Manufacturer Warranty
|
4-year warranty
|
General
|
---|
Device Type
|
Console server
|
Height (Rack Units)
|
1U
|
Width
|
17.3 in
|
Depth
|
6.9 in
|
Height
|
1.8 in
|
Weight
|
7.01 lbs
|
Enclosure Color
|
Black
|
Expansion / Connectivity
|
---|
Interfaces
|
2 x 1000Base-T - RJ-45 ¦ 48 x serial - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 1 x console - RJ-45
|
Manufacturer Warranty
|
---|
Service & Support
|
Limited warranty - 4 years
|
Miscellaneous
|
---|
Included Accessories
|
6 rubber feet, rack mount kit
|
Cables Included
|
2 x patch cable - 6 ft ¦ 2 x serial adapter ¦ 1 x crossover adapter
|
Compliant Standards
|
FCC, RoHS, REACH
|
TAA Compliant
|
Yes
|
Networking
|
---|
Form Factor
|
Rack-mountable
|
Ports Qty
|
48
|
Connectivity Technology
|
Wired
|
Data Link Protocol
|
Gigabit Ethernet, RS-232
|
Remote Management Protocol
|
SSH, CLI
|
Status Indicators
|
Power, serial
|
Features
|
Firewall protection, DHCP server, metal housing
|
Encryption Algorithm
|
SSL, FIPS 140-2
|
Authentication Method
|
Kerberos, Secure Shell (SSH), RADIUS, TACACS+, LDAP
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP)
|
Power
|
---|
Power Device
|
Internal power supply
|
Installed Qty
|
2
|
Power Redundancy
|
Yes
|
Voltage Required
|
AC 100 - 240 V
|
Power Consumption Operational
|
25 Watt
|
Environmental Parameters
|
---|
Min Operating Temperature
|
41 °F
|
Max Operating Temperature
|
122 °F
|
Humidity Range Operating
|
5 - 90% (non-condensing)
|
Processor / Memory / Storage
|
---|
Flash Memory
|
4 GB
|
Dimensions & Weight (Shipping)
|
---|
Shipping Width
|
19.3 in
|
Shipping Depth
|
10.6 in
|
Shipping Height
|
3.3 in
|
Shipping Weight
|
7.61 lbs
|
