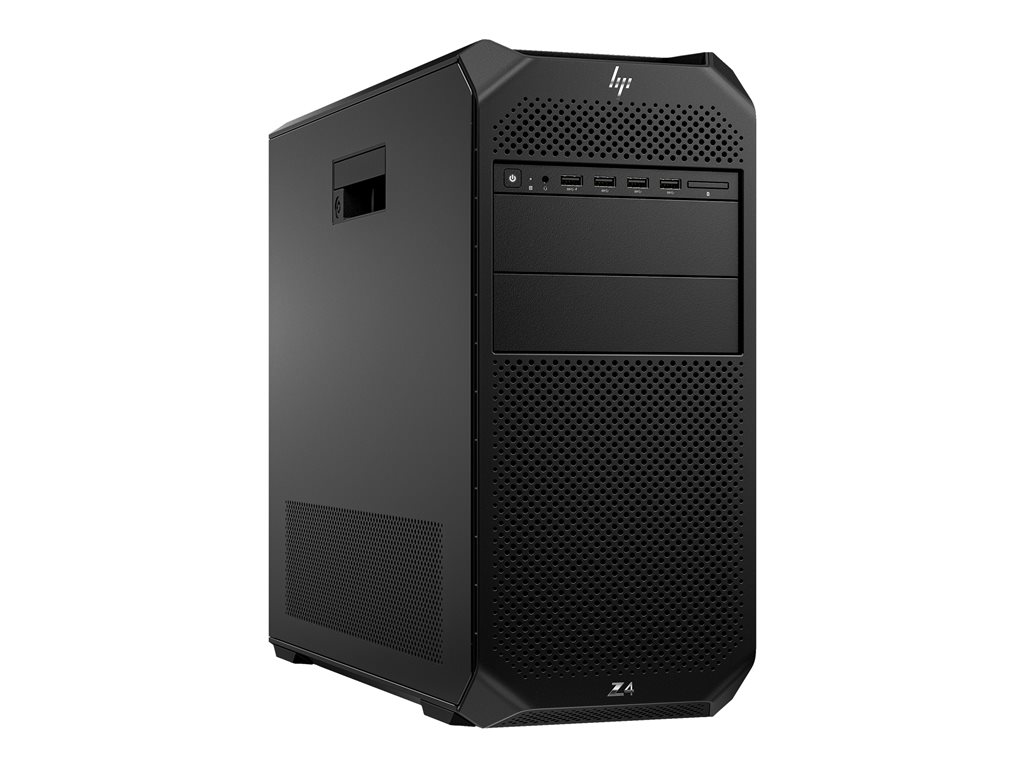

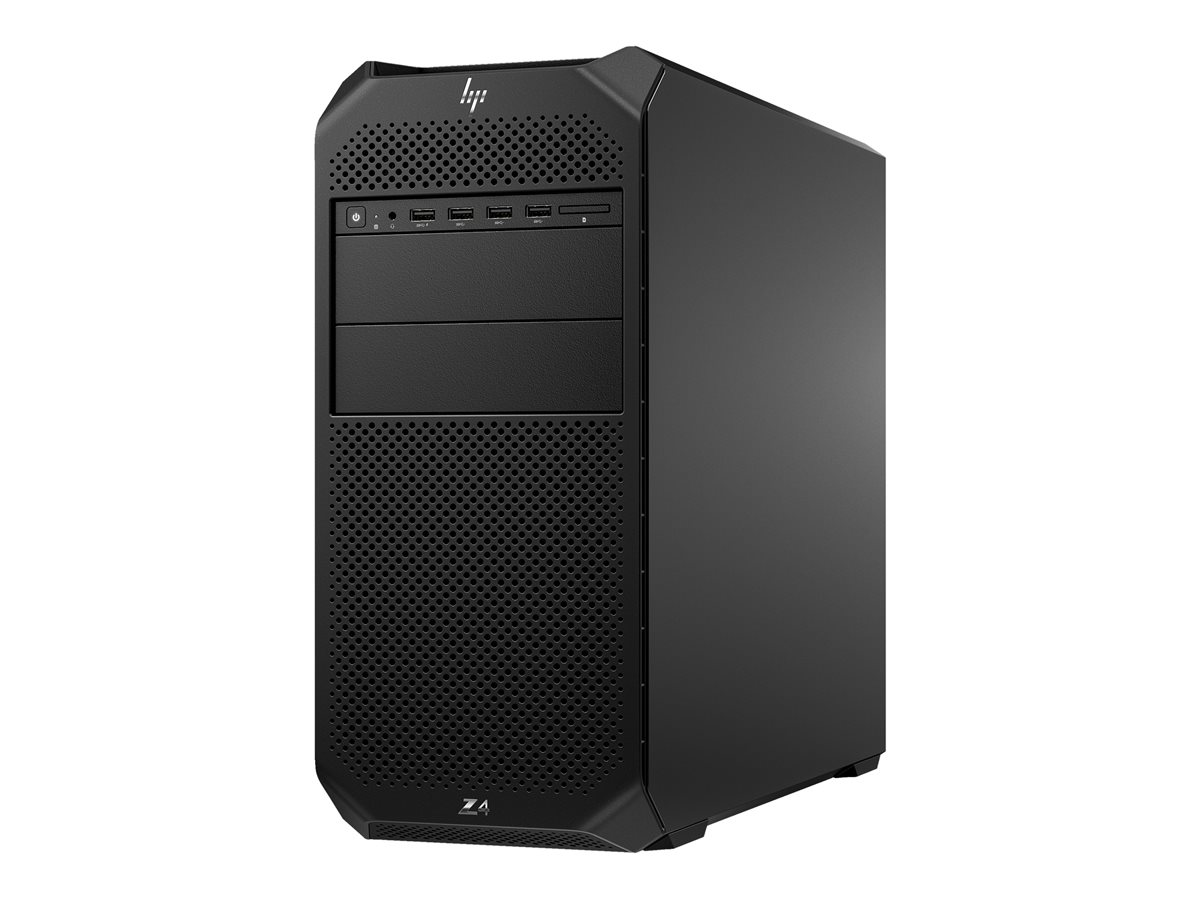

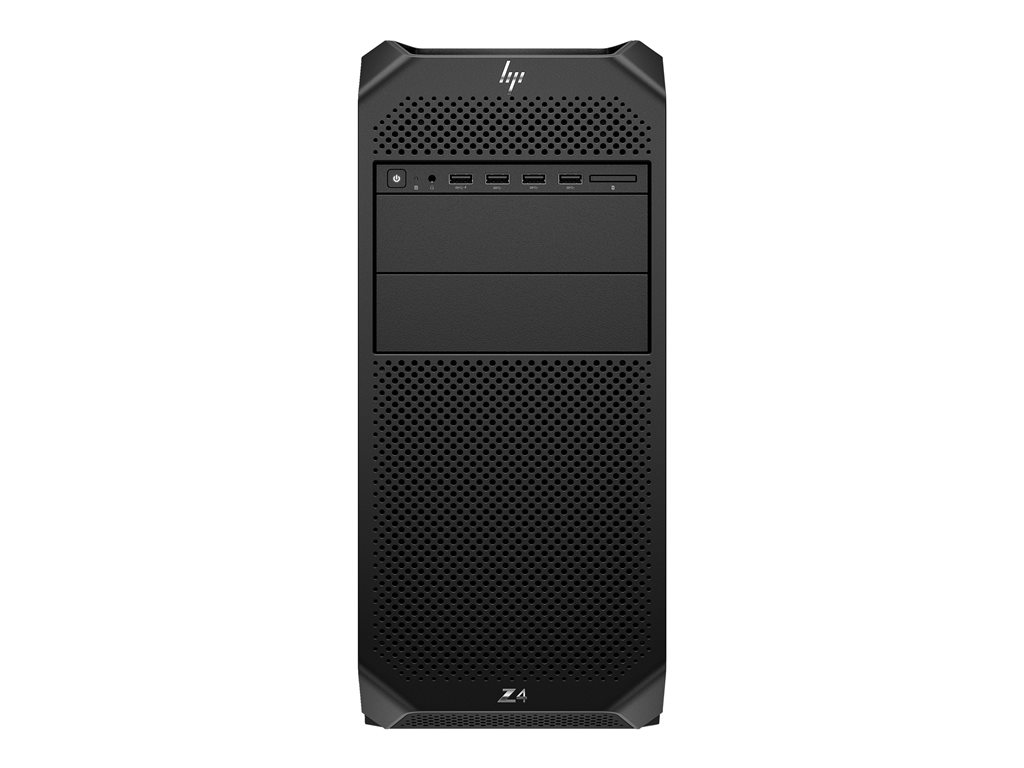

Tower 4U - 1 x Xeon W W3-2435 / up to 4.5 GHz - RAM 64 GB - SSD 1 TB - HP Z Turbo Drive, NVMe, TLC - RTX A2000 - Gigabit Ethernet, 10 Gigabit Ethernet - Win 11 Pro - monitor: none - keyboard: US - black
| Main Specifications | |
|---|---|
| Product Description | HP Workstation Z4 G5 - tower Xeon W W3-2435 3.1 GHz - 64 GB - SSD 1 TB - US |
| Type | Workstation - tower |
| Height (Rack Units) | 4U |
| Localization | Language: English / region: United States |
| Processor | 1 x Intel Xeon W W3-2435 / 3.1 GHz (up to 4.5 GHz, (8-core) |
| Processor Socket | LGA4677 Socket-E |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Turbo Boost Max 3.0 |
| Cache Memory | 22.5 MB L3 cache |
| Cache Per Processor | 22.5 MB |
| RAM | 64 GB (installed) / 512 GB (max) - DDR5 SDRAM - ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | SSD 1 TB - PCI Express 4.0 - M.2 - HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Optical Storage | No optical drive |
| Graphics Controller | PCIe 4.0 x16 - NVIDIA RTX A2000 |
| Video Memory | 12 GB GDDR6 SDRAM |
| Networking | 1GbE, 10GbE |
| Keyboard | US |
| Power | (50/60 Hz) |
| OS Provided | Windows 11 Pro |
| Software Included | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Driver Packs, HP Image Assistant, HP System Software Manager (free download), HP Sure Click, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Tamper Lock, HP Client Security Manager Gen7, HP Sure Recover Gen4, HP Smart Support, HP Sure Run Gen5, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Sure Start Gen7 |
| Color | Black |
| Dimensions (WxDxH) | 6.6 in x 17.5 in x 15.2 in |
| Weight | 23.15 lbs |
| Environmental Standards | ENERGY STAR Qualified |
| Carbon Footprint | 1130 kg carbon emissions |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site |
| General | |
| Type | Workstation |
| Product Form Factor | Tower - 4U |
| Sensors | HP Tamper Lock |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Color | Black |
| Localization | Language: English / region: United States |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x external 5.25" ¦ 2 (total) / 2 (free) x internal 3.5" |
| Slots | 1 (total) / 0 (free) x PCIe 5.0 x16 ¦ 2 (total) / 1 (free) x PCIe 4.0 x4 ¦ 2 (total) / 2 (free) x PCIe 4.0 x16 ¦ 2 (total) / 1 (free) x M.2 Card (PCIe 4.0 x4 mode (for internal storage)) |
| Interfaces | 4 x USB 3.2 Gen 1 (4 front) (one of them is Battery Charging 1.2) ¦ 1 x audio line-out/line-in (1 rear) ¦ 1 x headphones/microphone (1 in front) ¦ 2 x LAN (10Gigabit Ethernet) ¦ 4 x Mini DisplayPort 1.4a |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), padlock loop, chassis intrusion sensor |
| Security Slot Type | Kensington security slot |
| Compliant Standards | RoHS, FIPS 140-2, Common Criteria EAL4+, ERP, CECP, CEL, WEEE 2002/96/EC, TCO Certified Edge, IT ECO Declaration, JEDEC JESD 300-5, DASH 1.2 |
| RAM | |
| Installed Size | 64 GB (installed) / 512 GB (max) |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 4400 MHz |
| Rated Memory Speed | 4800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 8 (total) / 4 (empty) |
| Configuration Features | 4 x 16 GB |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Intel X550-T2 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE 2.1 support, Intel Active Management Technology (AMT) 16.10 |
| Power | |
| Device Type | Power supply |
| Voltage Required | AC 90-269 V (50/60 Hz) |
| Power Provided | 775 Watt |
| Efficiency | 90% |
| Power Factor Correction | Yes (active) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 85% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 5 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Cache Memory | |
| Installed Size | L3 cache - 22.5 MB |
| Cache Per Processor | 22.5 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Interface Type | PCIe 4.0 x16 |
| Graphics Processor | NVIDIA RTX A2000 |
| Video Memory | 12 GB GDDR6 SDRAM |
| Bandwidth | 288 GBps |
| Video Interfaces | DisplayPort |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | Windows 11 Pro English |
| Software | HP Support Assistant, HP Performance Advisor, HP PC Hardware Diagnostics UEFI, HP BIOSphere, HP BIOS Configuration Utility (free download), HP Driver Packs, HP Image Assistant, HP System Software Manager (free download), HP Sure Click, HP Manageability Integration Kit, HP Sure Sense, HP Sure Admin, HP Tamper Lock, HP Client Security Manager Gen7, HP Sure Recover Gen4, HP Smart Support, HP Sure Run Gen5, HP Platform Certificate, HP PC Hardware Diagnostics Windows, HP Anyware, HP Data Science Stack, HP Sure Start Gen7 |
| Hard Drive | |
| Type | SSD - M.2 |
| Capacity | 1 x 1 TB |
| Interface Type | PCI Express 4.0 |
| Features | HP Z Turbo Drive, NVM Express (NVMe), triple-level cell (TLC) |
| Input Device | |
| Type | Mouse, keyboard |
| Dimensions & Weight | |
| Width | 6.6 in |
| Depth | 17.5 in |
| Height | 15.2 in |
| Weight | 23.15 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 12.4 in |
| Shipping Depth | 22.5 in |
| Shipping Height | 22.2 in |
| Shipping Weight | 31.64 lbs |
| Keyboard | |
| Keyboard Name | HP 125 |
| Localization & Layout | US |
| Mouse | |
| Mouse Name | HP 320M |
| Processor / Chipset | |
| CPU | Intel Xeon W W3-2435 |
| Clock Speed | 3.1 GHz |
| Max Turbo Speed | 4.5 GHz |
| Number of Cores | 8-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Turbo Boost Max 3.0 |
| CPU Socket | LGA4677 Socket-E |
| Chipset Type | Intel W790 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| Carbon Footprint | 1130 kg carbon emissions |
| Manufacturing (kg CO2e) | 295 |
| Logistics (kg CO2e) | 3 |
| Use (kg CO2e) | 827 |
| EOL (kg CO2e) | 4 |
| Total Carbon w/o Use Phase (kg CO2e) | 1130 |
 |
 |
