Lenovo Legion 5 16IRX9 83DG
Back to Results
Main Specifications
Product Description

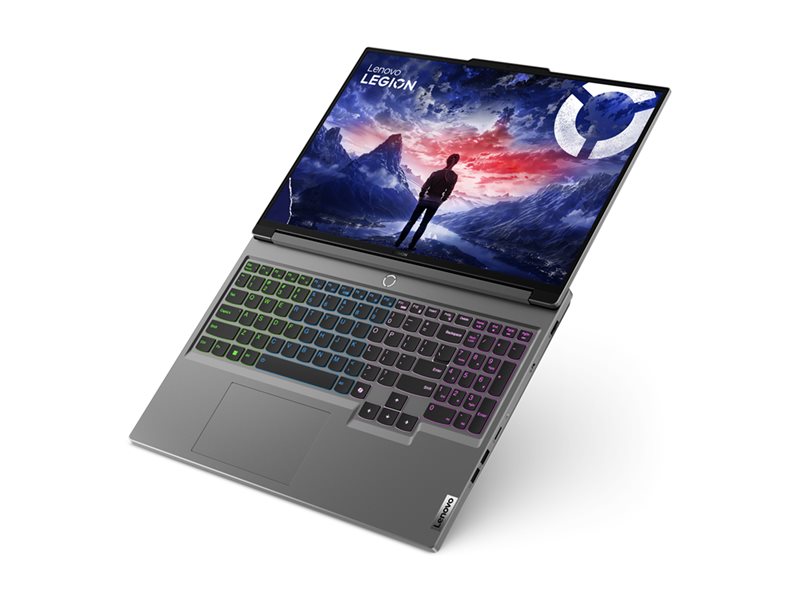

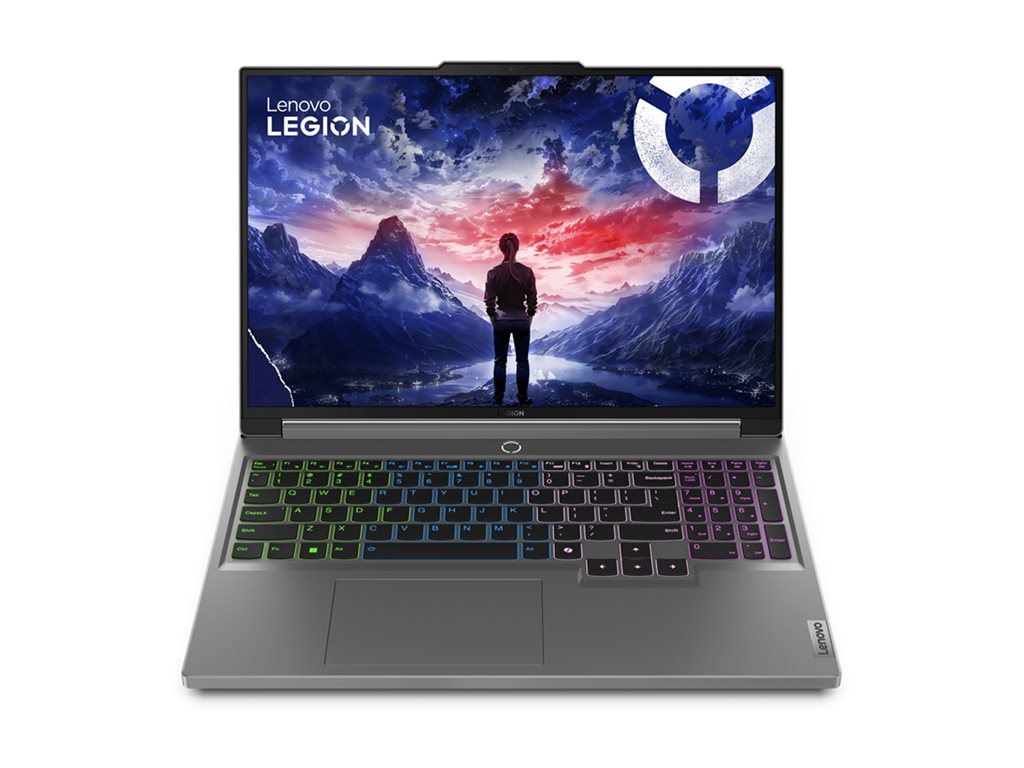

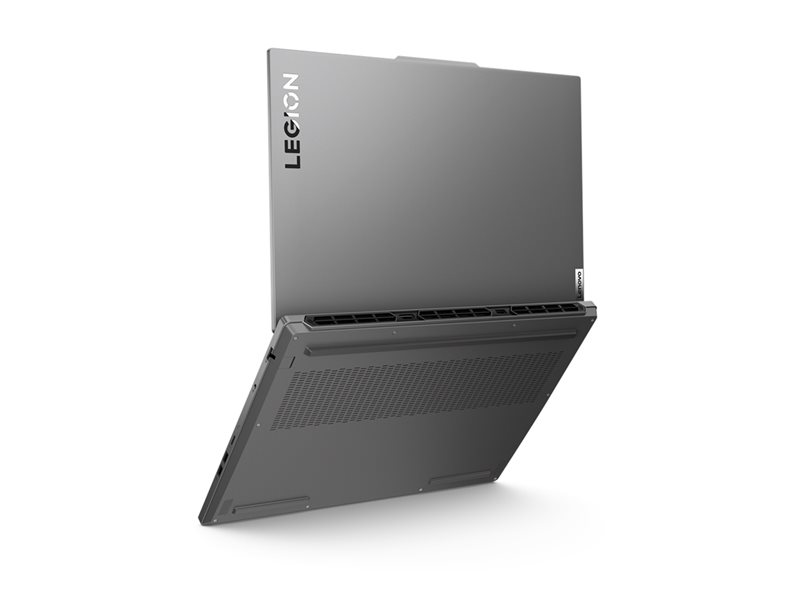

Lenovo Legion 5 16IRX9 - 16" - Intel Core i7 - i7-14650HX - 16 GB RAM - 512 GB SSD - US English
Product Type
Notebook
Operating System
Win 11 Home - English
Processor
Intel Core i7 (14th Gen) - i7-14650HX / 2.2 GHz, up to 5.2 GHz / 30 MB Cache
Memory
16 GB DDR5 (1 x 16 GB)
Storage
512 GB SSD - NVMe
Display
16" 2560 x 1600 / WQXGA @ 165 Hz
Graphics
NVIDIA GeForce RTX 4050 / Intel UHD Graphics
Video Memory
6 GB GDDR6 SDRAM
VR Ready
Yes
Gaming
Yes
Keyboard
US English
Keyboard Backlight
Yes (RGB)
Numeric Keypad
Yes
Integrated Webcam
Yes
Networking
Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Gigabit Ethernet
Battery
Up to 6.5 hours
Security
Firmware Trusted Platform Module (TPM 2.0) Security Chip
Color
Luna gray
Dimensions (WxDxH)
14.2 in x 10.3 in x 1 in
Weight
5.07 lbs
Localization
Language: English / region: United States
Manufacturer Warranty
Limited warranty - 1 year - pick-up and return
General
Product Type
Notebook
Operating System
Windows 11 Home - English
Memory
RAM
16 GB (1 x 16 GB)
Max RAM Supported
32 GB
Technology
DDR5 SDRAM
Speed
5600 MHz
Rated Speed
5600 MHz
Form Factor
SO-DIMM 262-pin
Slots Qty
2
Empty Slots
1
Manufacturer Warranty
Service & Support
Limited warranty - 1 year - pick-up and return
Miscellaneous
Color
Luna gray
Case Material
Aluminum (top), polycarbonate ABS (bottom)
Surface Finish
Aluminium anodizing stamping with sandblasting
Security
Firmware Trusted Platform Module (TPM 2.0) Security Chip
Features
Administrator password, hard drive password, power-on password, Rapid Charge Pro, self-healing BIOS, LA1 chip
Included Accessories
Power adapter
Compliant Standards
RoHS, Energy-Related Products (ErP) Lot 6, Energy-Related Products (ErP) Lot 26, TUV Rheinland Low Blue Light (Hardware Solution)
Localization
Language: English / region: United States
Storage
Main Storage
512 GB SSD M.2 2242 PCIe 4.0 x4 - NVM Express (NVMe)
Environmental Parameters
Min Operating Temperature
41 °F
Max Operating Temperature
95 °F
Humidity Range Operating
8 - 95%
Software
Software Included
Microsoft Office (Trial)
Battery
Technology
Lithium polymer
Capacity
80 Wh
Run Time
Up to 6.5 hours
Battery Run Time
Local video (1080p) playback time (150 nits): up to 6.5 hours
Display
Type
16" - IPS
Resolution
2560 x 1600 (WQXGA)
V-Sync Rate at Max Res.
165 Hz
Widescreen
Yes
Image Aspect Ratio
16:10
Image Brightness
350 cd/m²
Horizontal Viewing Angle
+89 / -89
Vertical Viewing Angle
+89 / -89
Color Gamut
100% sRGB
Features
Anti-glare, NVIDIA G-SYNC compatible, Low Blue Light technology, Dolby Vision, advanced optimus, X-Rite factory color calibration
Communications
Wireless
Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Wireless Controller
M.2 Card
Network Interface
Gigabit Ethernet
Features
Wake-on-LAN (WOL), dual stream (2x2)
Dimensions & Weight
Dimensions (WxDxH)
14.2 in x 10.3 in x 1 in
Weight
5.07 lbs
Processor / Chipset
CPU
Intel Core i7 (14th Gen) i7-14650HX / 2.2 GHz
Max Turbo Speed
5.2 GHz
Number of Cores
16-core
Cache
30 MB
Chipset
Intel HM770
Features
Integrated memory controller
Audio & Video
Multi-GPU Configuration
1 single GPU card / integrated GPU
Graphics Processor
NVIDIA GeForce RTX 4050 / Intel UHD Graphics
Video Memory
6 GB GDDR6 SDRAM
Max Monitors Supported
3 external monitor(s)
Video System Features
Advanced Optimus, Dynamic Boost 2.0, Direct X 12 Ultimate, NVIDIA DLSS 3
VR Ready
Yes
Gaming
Yes
Camera
Yes - 1080p
Camera Features
Fixed focus, e-camera shutter
Sound
Stereo speakers, dual array microphone
Codec
Realtek ALC3287
Compliant Standards
High Definition Audio
Audio Features
Output: Nahimic audio
Input
Type
Keyboard, touchpad
Keyboard Backlight
Yes (RGB)
Keyboard Layout
US English
Numeric Keypad
Yes
Features
Multi-touch touchpad, buttonless touchpad, 4-Zone RGB backlight
AC Adapter
Input
AC 100-240 V (50/60 Hz)
Output
230 Watt
Connections & Expansion
Slots
1 x M.2 (PCI Express 4.0 x4) (1 free) ¦ 1 x M.2 (PCI Express 4.0 x4) (0 free)
Interfaces Details
2 x USB 3.2 Gen 1 ¦ USB 3.2 Gen 1 (Always On) ¦ USB-C 3.2 Gen 2 (supports DisplayPort 1.4 Alt Mode) (140W Power Delivery) ¦ USB-C 3.2 Gen 2 (supports DisplayPort 1.4 Alt Mode) ¦ HDMI (8K support) ¦ LAN ¦ Headphone/microphone combo jack
Memory Card Reader
Yes (microSD)
Sustainability Information
TCO Certified
-
