Dell Pro Max 16 Plus MB16250
Back to Results
Main Specifications
Product Description

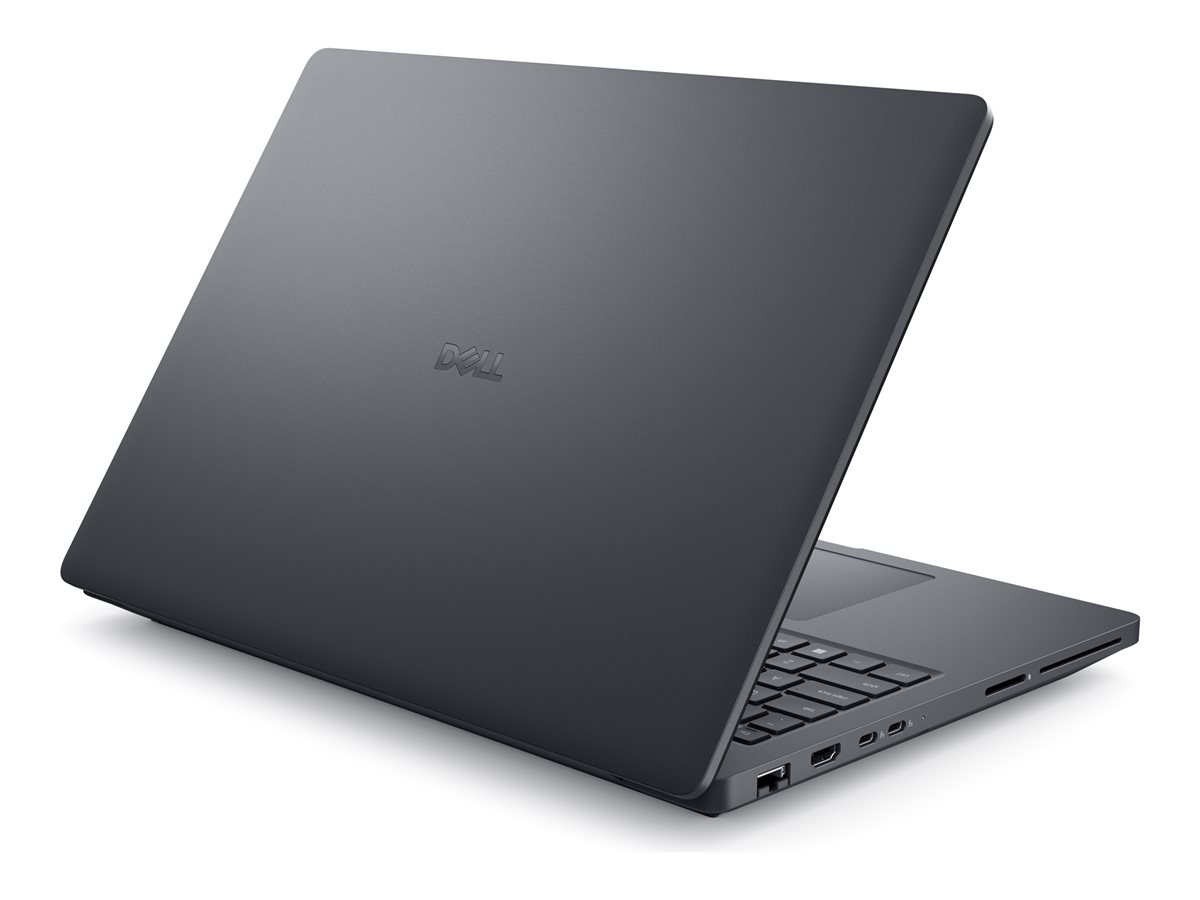

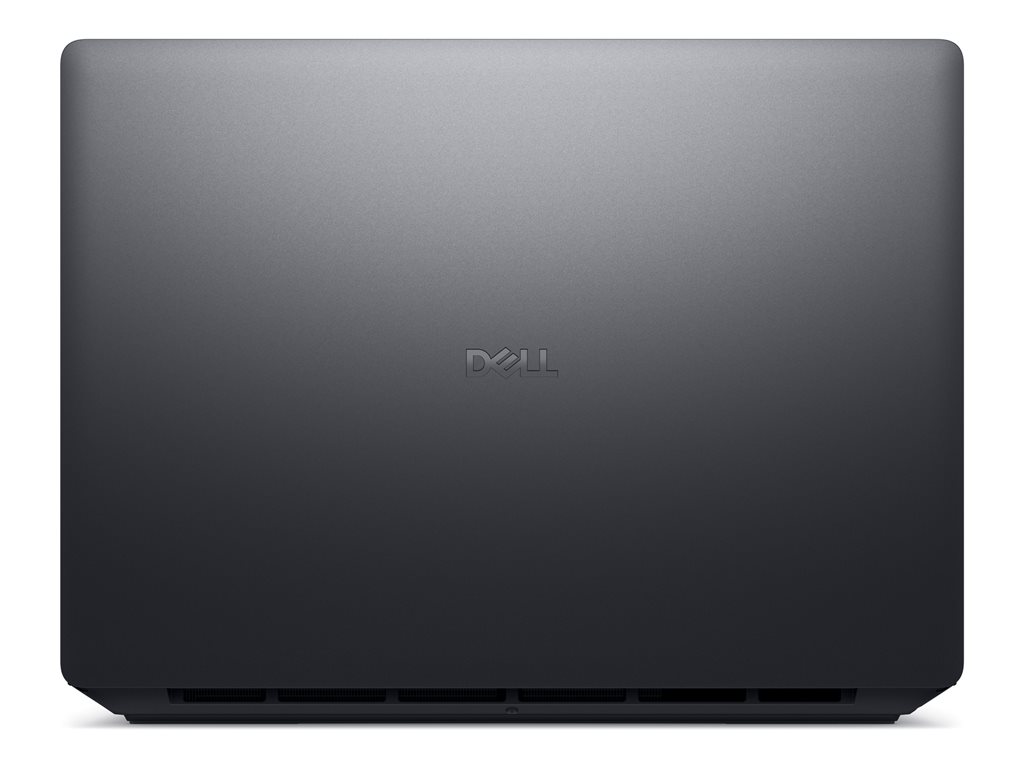

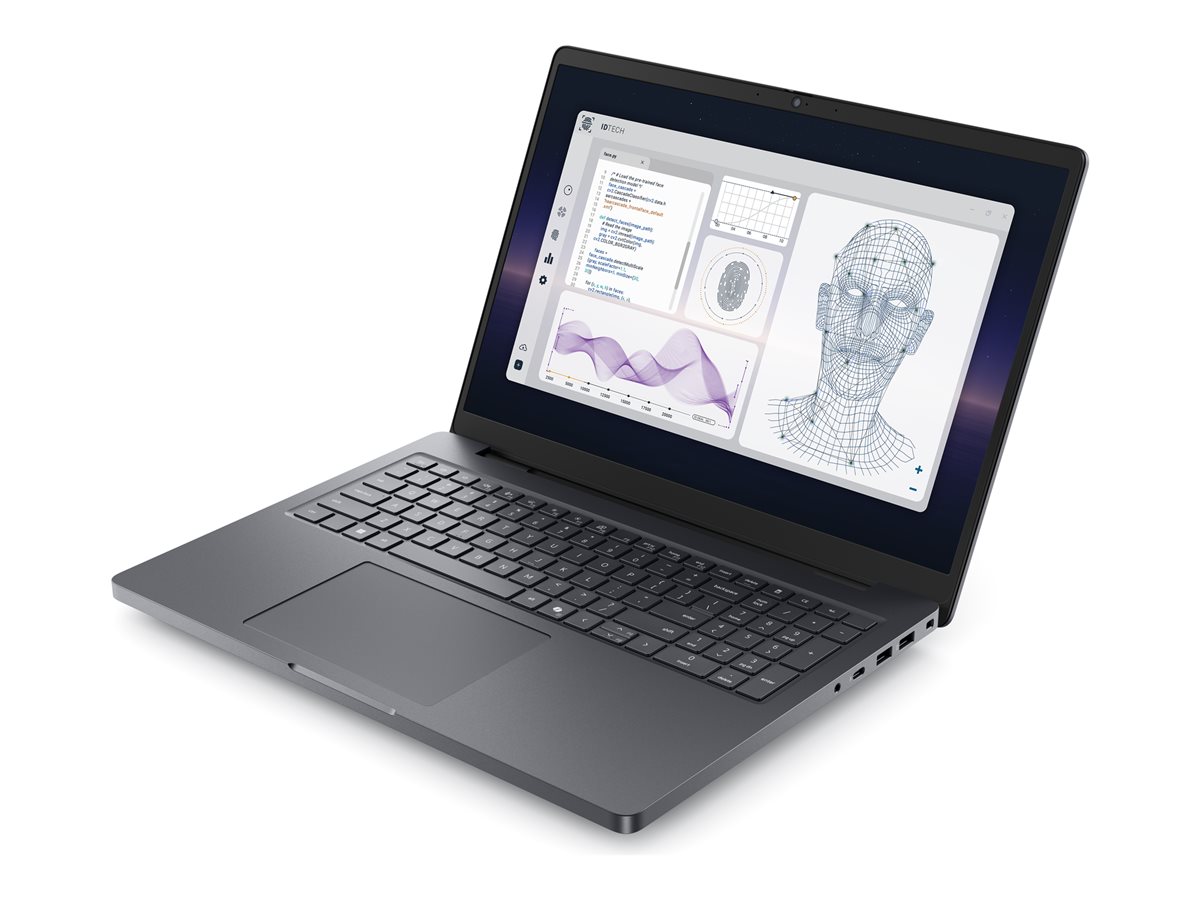

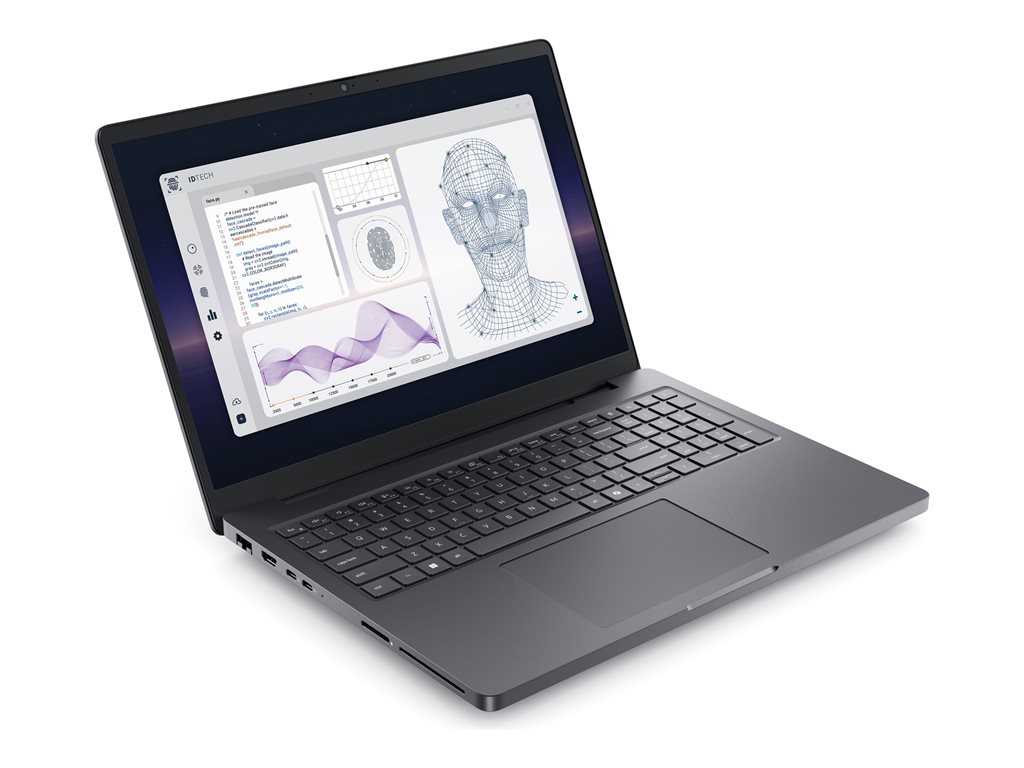

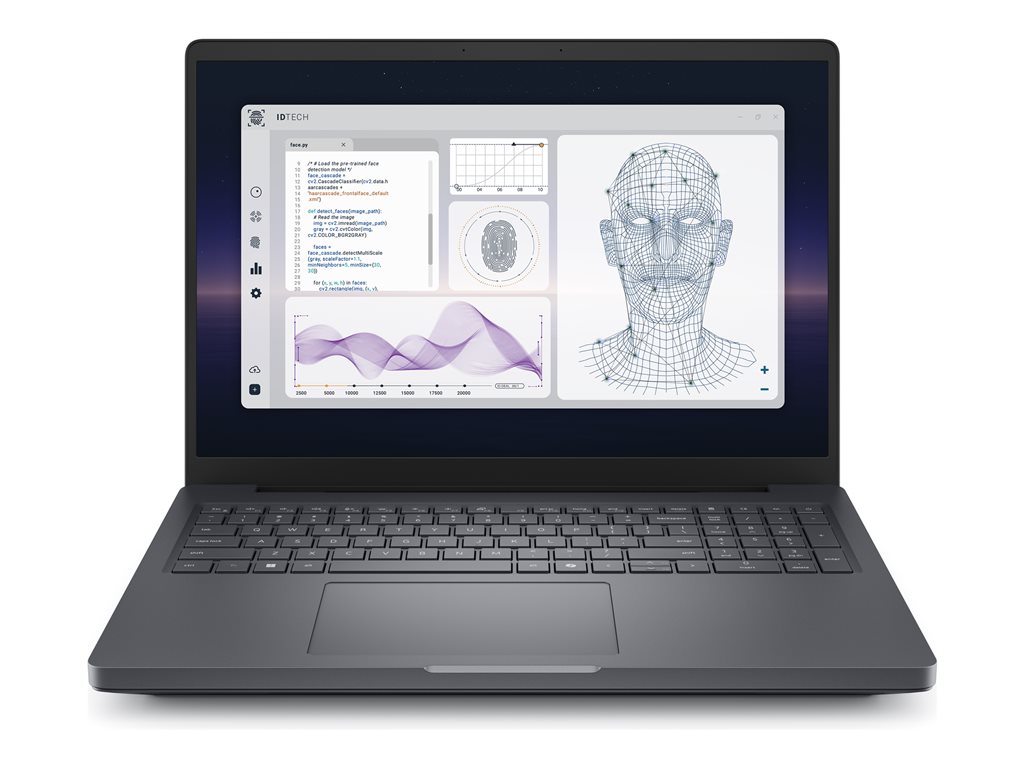

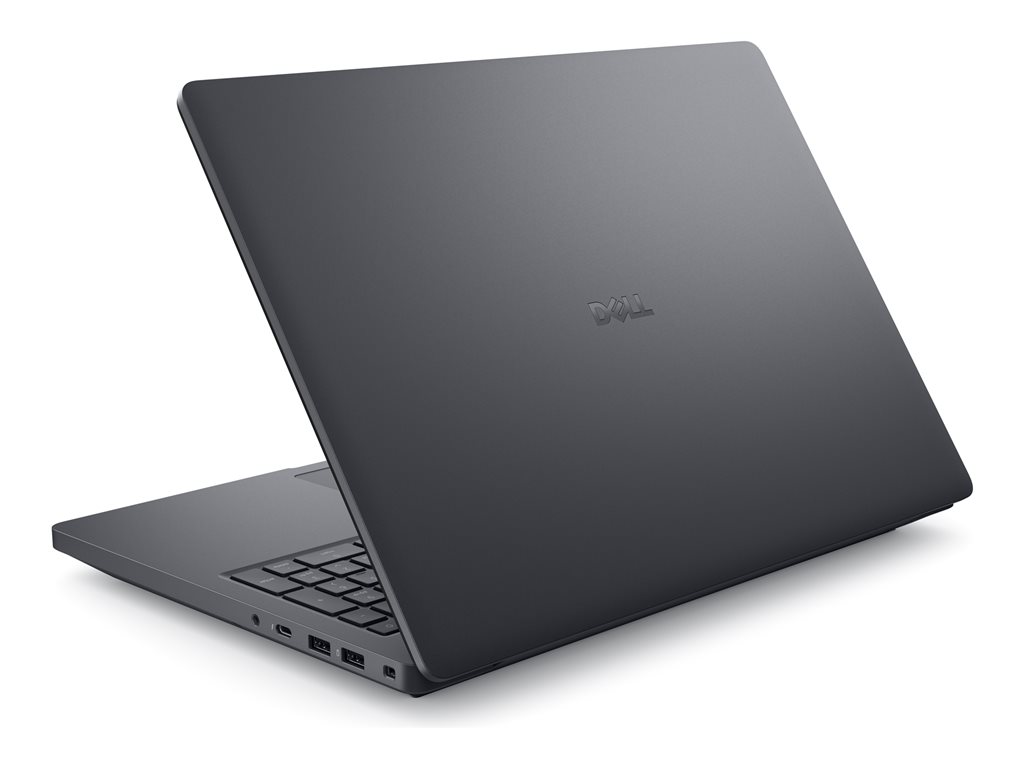

Dell Pro Max 16 Plus MB16250 - 16" - Intel Core Ultra 9 - 285HX - vPro Enterprise - 64 GB RAM - 1 TB SSD
Product Type
Mobile workstation
Operating System
Win 11 Pro
Platform Technology
Intel vPro Enterprise
Processor
Intel Core Ultra 9 (Series 2) - 285HX / 2.8 GHz, up to 5.5 GHz / 36 MB Cache
Neural Processor Unit (NPU)
Intel AI Boost - up to 13 TOPS
Memory
64 GB DDR5 (2 x 32 GB)
Storage
1 TB SSD - SED, NVMe, Class 40, Performance
Display
16" 1920 x 1200 / Full HD Plus @ 120 Hz - 141 ppi
Graphics
NVIDIA RTX PRO 3000 Blackwell / Intel Graphics - up to 8 TOPS
Video Memory
12 GB GDDR7 SDRAM
Input Device
Keyboard, touchpad
Keyboard Backlight
Yes
Numeric Keypad
Yes
Integrated Webcam
Yes
Networking
Bluetooth, 802.11a/b/g/n/ac/ax/be, 2.5 Gigabit Ethernet
Battery
6-cell
Features
Accelerometer, gyro sensor, hall sensor, brightness sensor
Security
Discrete Trusted Platform Module (TPM 2.0) Security Chip
Color
Magnetite
Dimensions (WxDxH)
14.2 in x 10.2 in x 1.2 in
Weight
5.62 lbs
Pricing Type
Build To Stock (BTS)
Environmental Standards
ENERGY STAR Qualified EPEAT Gold, EPEAT Climate+
Carbon Footprint
222 kg carbon emissions
Bundled Services
3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support Disti SnS
General
Product Type
Mobile workstation
Operating System
Windows 11 Pro
Memory
RAM
64 GB (2 x 32 GB)
Max RAM Supported
64 GB
Technology
DDR5 SDRAM - non-ECC
Speed
6400 MT/s
Rated Speed
6400 MT/s
Form Factor
CSO-DIMM 262-pin
Slots Qty
2
Empty Slots
0
Manufacturer Warranty
Bundled Services
3 Years Basic Onsite Service after Remote Diagnosis with Hardware-Only Support Disti SnS
Miscellaneous
Color
Magnetite
Integrated Options
Accelerometer, gyro sensor, hall sensor, brightness sensor
Security
Discrete Trusted Platform Module (TPM 2.0) Security Chip
Features
Chassis intrusion detection, ExpressCharge, ExpressChargeBoost, palm rest
Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Security Slot Type
Noble Wedge security slot
Included Accessories
USB-C power adapter, POD Label
Compliant Standards
FIPS 140-2, TCG Certified
Pricing Type
Build To Stock (BTS)
Storage
Main Storage
1 TB SSD M.2 2280 PCIe - Self-Encrypting Drive, NVM Express (NVMe), Class 40, Performance
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
95 °F
Humidity Range Operating
10 - 90% (non-condensing)
Shock Tolerance (operating)
110 g @ 2 ms half-sine pulse
Shock Tolerance (non-operating)
160 g @ 2 ms half-sine pulse
Vibration Tolerance (operating)
0.66 g @ RMS (random)
Vibration Tolerance (non-operating)
1.3 g @ RMS (random)
Software
Software Included
Intel Rapid Storage Technology, Intel Connectivity Performance Suite, Activate your Microsoft 365 for a 30 day trial
Battery
Technology
6-cell lithium ion
Capacity
96 Wh
Display
Type
16"
Resolution
1920 x 1200 (Full HD Plus)
V-Sync Rate at Max Res.
120 Hz
Widescreen
Yes
Pixel Density (ppi)
141
Image Brightness
500 cd/m²
Horizontal Viewing Angle
+85 / -85
Vertical Viewing Angle
+85 / -85
Color Gamut
100% DCI-P3
Features
Anti-glare, Wide Viewing Angle, 35 ms response rate, Low Blue Light technology, 0.18 mm pixel pitch, Variable refresh rate (VRR)
Communications
Wireless
Bluetooth, 802.11a/b/g/n/ac/ax/be
Wireless Controller
Intel WI-FI 7 BE200 - M.2 2230
Network Interface
2.5 Gigabit Ethernet
Ethernet Controller
Intel I226-LM
Dimensions & Weight
Dimensions (WxDxH)
14.2 in x 10.2 in x 1.2 in
Weight
5.62 lbs
Processor / Chipset
CPU
Intel Core Ultra 9 (Series 2) 285HX / 2.8 GHz
Max Turbo Speed
5.5 GHz
Number of Cores
24-core
Performance Cores
8
Efficient Cores
16
Cache
36 MB
Chipset
Intel WM880
Platform Technology
Intel vPro Enterprise
Features
24 Threads
Audio & Video
Multi-GPU Configuration
1 single GPU card / integrated GPU
Graphics Processor
NVIDIA RTX PRO 3000 Blackwell / Intel Graphics - up to 8 TOPS
Video Memory
12 GB GDDR7 SDRAM
Video System Features
NVIDIA Advanced Optimus
Camera
Yes
Resolution
8.29 Megapixel (standard), 0.23 Megapixel (infrared)
Image Sensor Type
CMOS
Frame Rate
30 frames per second
Camera Features
HDR (High Dynamic Range), IR camera, RGB camera, 86.6 degrees (IR camera), camera shutter, 88.1 degrees
Sound
Stereo speakers, dual array microphone
Codec
CS42L43
Input
Type

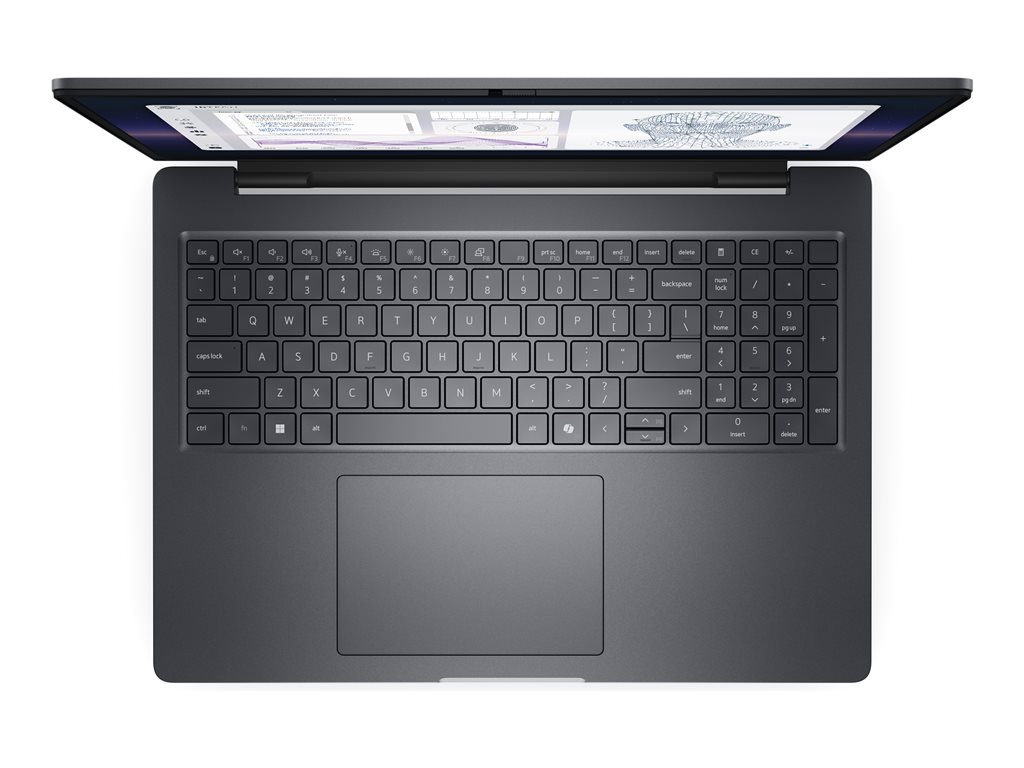

Keyboard, touchpad
Keyboard Backlight
Yes
Numeric Keypad
Yes
Features
Copilot key
AC Adapter
Input
AC 100-240/200-240 V (50/60 Hz)
Output
280 Watt, 5 / 9 / 12 / 15 / 20 / 28 / 36 / 48 V
Connections & Expansion
Slots
3 x M.2 Card (2 available) ¦ 1 x M.2 Card (0 available)
Interfaces Details

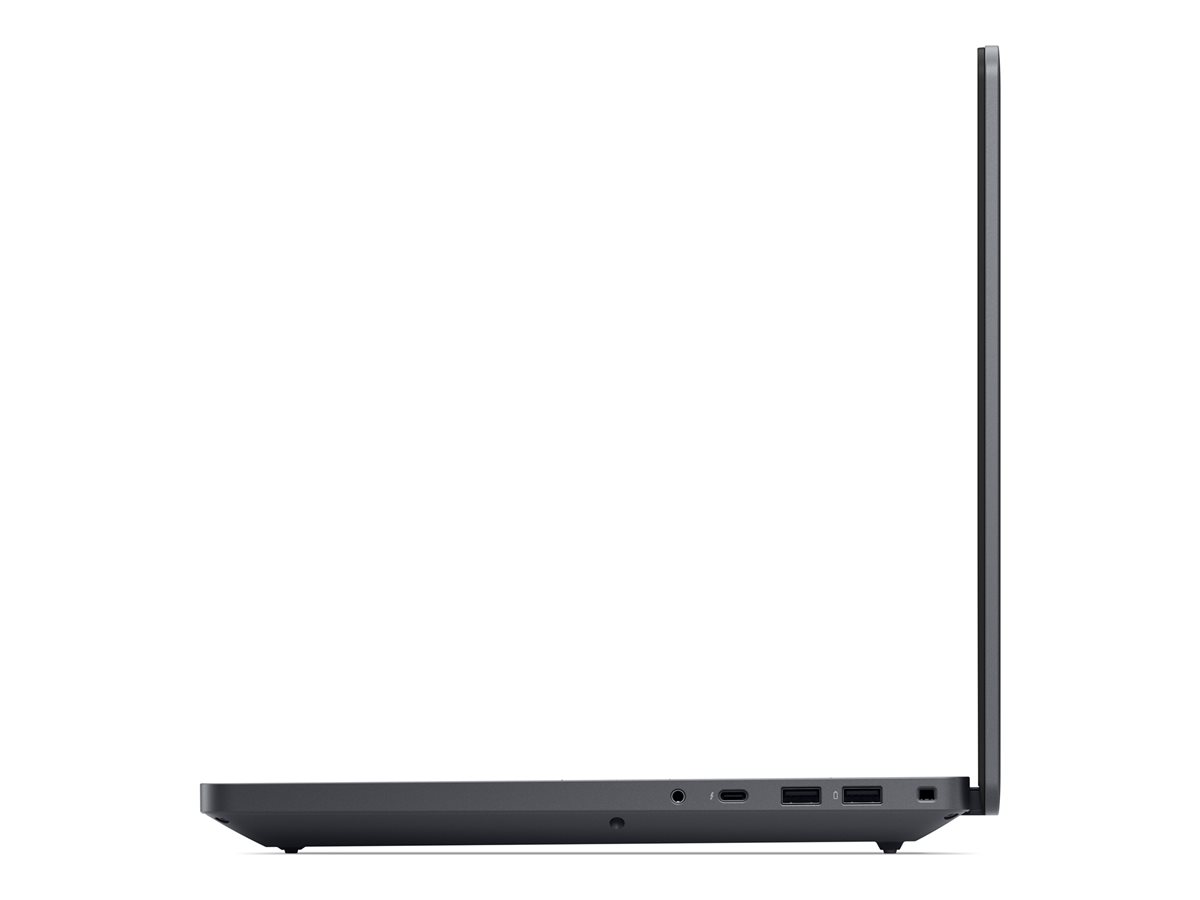

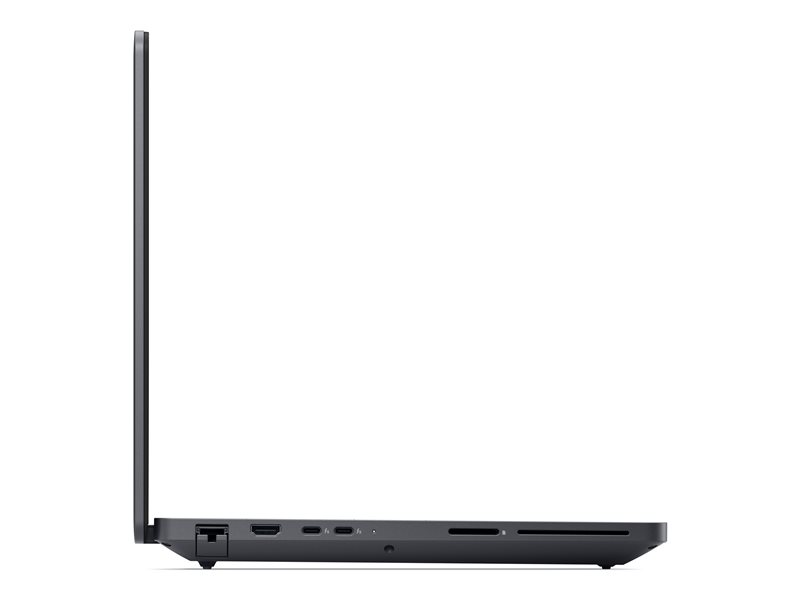

HDMI ¦ 2 x USB4/Thunderbolt 5/DisplayPort 2.1 (Power Delivery) ¦ USB 3.2 Gen 1 ¦ USB 3.2 Gen 1 (PowerShare) ¦ USB4 (supports Thunderbolt 4, DisplayPort 2.1 Alt Mode) (Power Delivery) ¦ Headphone/microphone combo jack ¦ LAN (RJ-45)
Memory Card Reader
Yes (SD Card, SDHC Card, SDXC Card)
Sustainability Information
EPEAT Compliant
EPEAT Gold
EPEAT Climate+
Yes
ENERGY STAR Certified
Yes
Carbon Footprint
222 kg carbon emissions
Manufacturing (kg CO2e)
141
Logistics (kg CO2e)
6
Use (kg CO2e)
70
EOL (kg CO2e)
5
Total Carbon w/o Use Phase (kg CO2e)
152
PAIA Version
GaBi version 1
Neural Processor Unit (NPU)
Neural Processor Unit (NPU)
Intel AI Boost
NPU Performance Up To (TOPS)
13 TOPS
Total Processor Performance Up To (TOPS)
36 TOPS
AI Datatype Support on NPU
INT8
Sparsity Support
Yes
AI Software Frameworks Supported by NPU
DirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Windows Studio Effects Support
Yes
