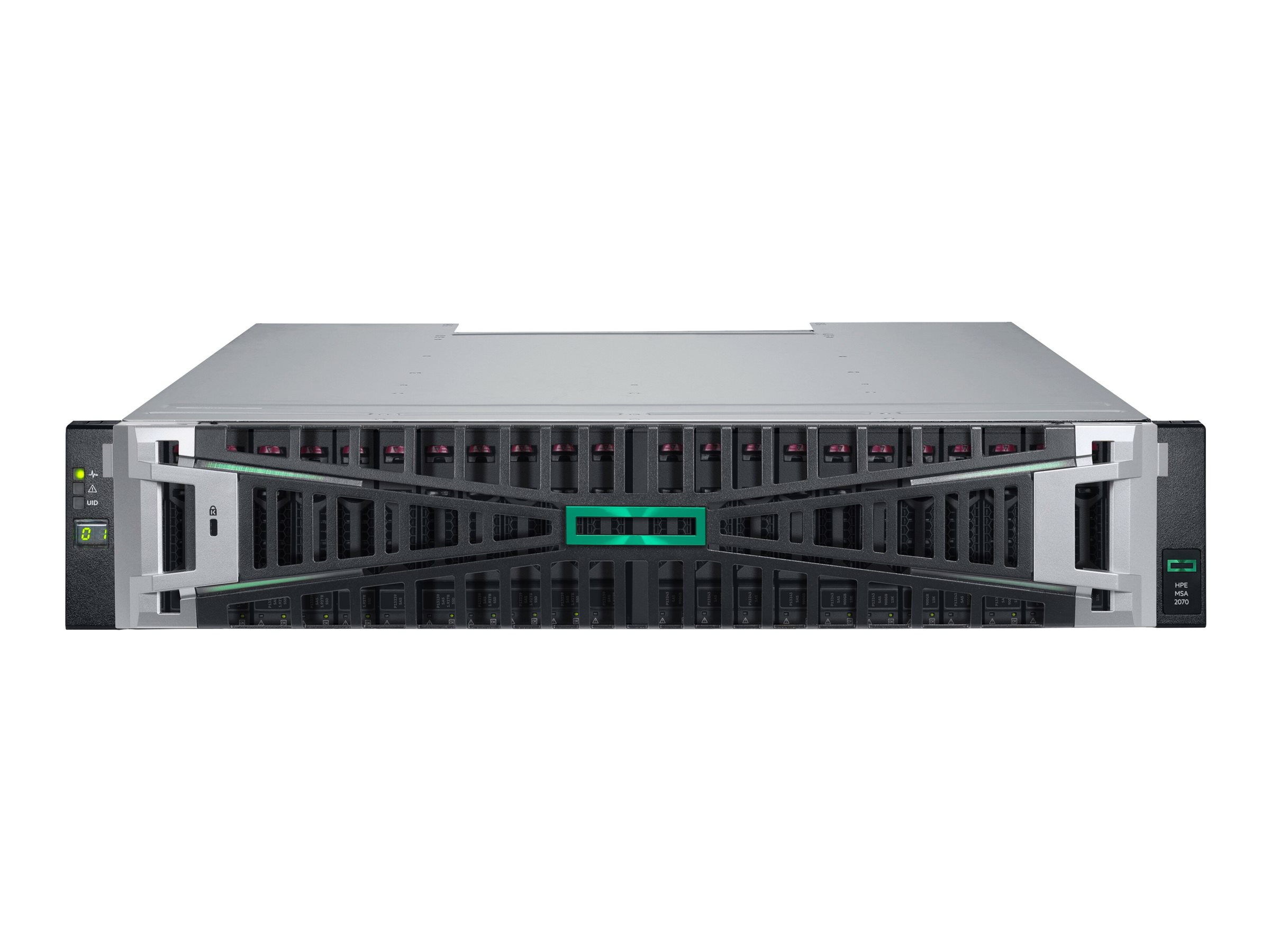

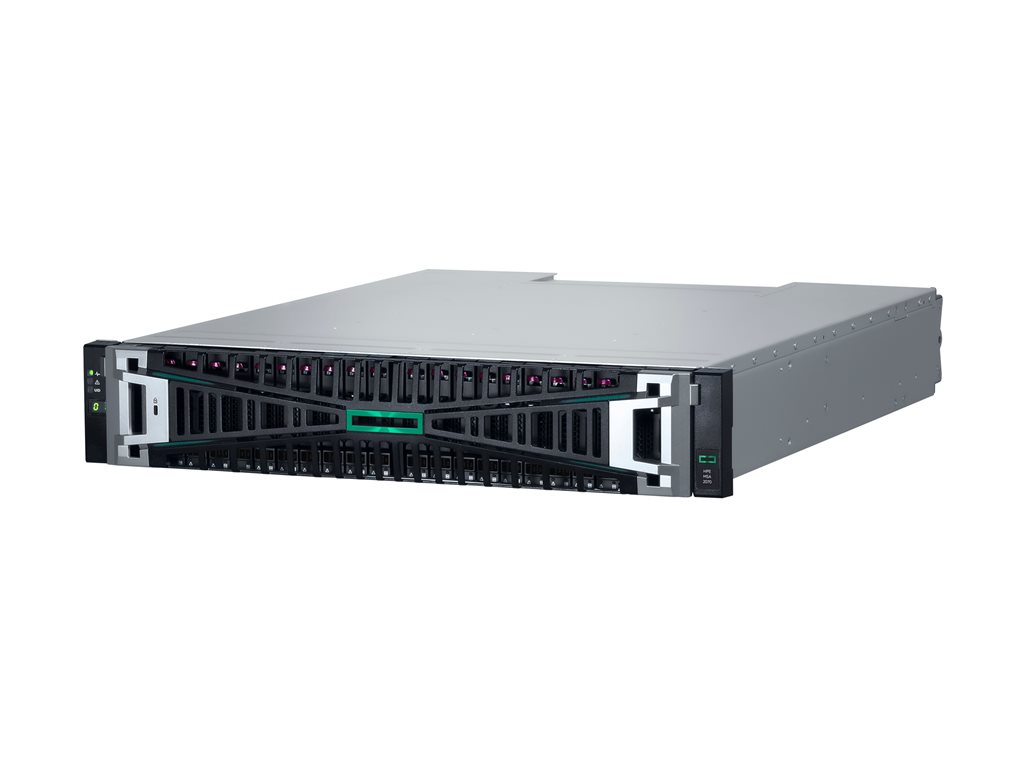

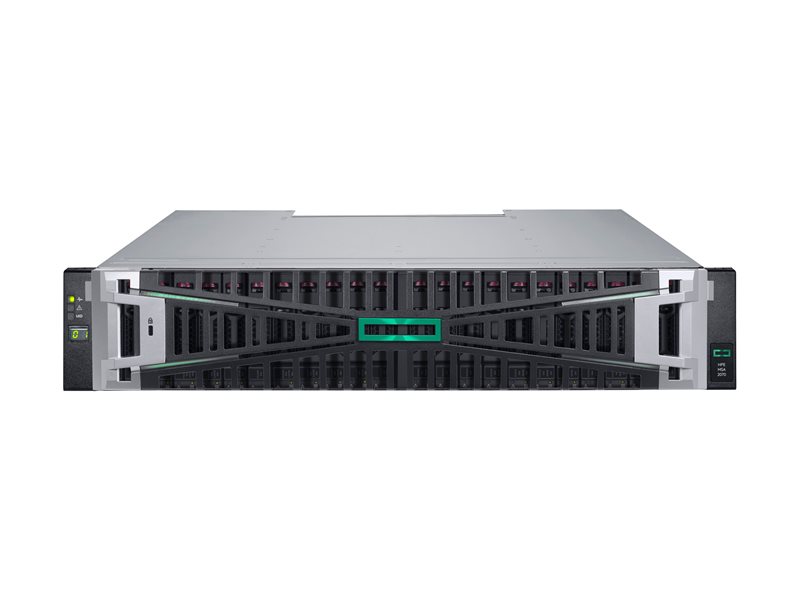

Hewlett Packard Enterprise - HPE Modular Smart Array 2070 32Gb Fibre Channel SFF Storage

Solid state drive array - 92 TB - 24 bays (SAS-3) - SSD 7.68 TB x 12 - 32Gb Fibre Channel (external) - rack-mountable - 2U - with 4 x 16Gb SFP FC XCVR transceiver

Manufacturer:

Hewlett Packard Enterprise

Part #:

P84182-B25

UNSPSC Code:

N/A

UPC:

0190017809380

Replacement Product:

N/A

Product Condition:

New

Reviews:

Price: $32,672.56

MSRP: $68,329.00

Qty:

Add to Cart

Add to Favorites

Product Description

Additional Details

Documents

What's Included

Main Specifications
Product Description	HPE Modular Smart Array 2070 32Gb Fibre Channel SFF Storage - SSD array
Device Type	Solid state drive array
Enclosure Type	Rack-mountable - 2U
Bundled with	4 x 16Gb SFP FC XCVR transceiver
Total Array Capacity	92 TB
Max Supported Capacity	737.28 TB
Interface	32Gb Fibre Channel
Installed Devices / Modules Qty	12 (installed) / 24 (max)
Supported Drives	SAS-3
Storage Controller	RAID (SAS 12Gb/s) - RAID 0, 1, 5, 6, 10, MSA-DP+
Storage Controller Quantity	2
Hard Drive	12 x 7.68 TB SSD SAS 12Gb/s
OS Required	Microsoft Windows Server, VMware vSphere, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, Citrix Hypervisor, Citrix XenServer
Power	AC 100-240 V 50/60 Hz
Power Redundancy	Yes
Dimensions (WxDxH)	17.5 in x 20 in x 3.5 in
Environmental Standards	ENERGY STAR Qualified
Manufacturer Warranty	3-year warranty
General
Device Type	Solid state drive array
Enclosure Type	Rack-mountable - 2U
Bundled with	4 x 16Gb SFP FC XCVR transceiver
Expansion / Connectivity
Expansion Bays	24 (total) / 12 (free) - 2.5" SFF
Interfaces	8 x 32Gb Fibre Channel ¦ 4 x mini-USB 2.0 (management) ¦ 2 x Ethernet 1000Base-T (management) - RJ-45 ¦ 2 x SAS 12Gb/s (expansion port)
Manufacturer Warranty
Service & Support	Limited warranty - parts - 3 years
Miscellaneous
Features	SMTP support, SNMP support
Compliant Standards	ASHRAE Class A3, UL, CSA 62368-1, EN 62368-1, EU Lot 9, VCCI Class A, FCC Class A certified, ICES-003 Class A, EN 55032 Class A, CISPR 32 Class A, EN 61000-3-2, EN 61000-3-3, RoHS, China RoHS, WEEE
Processor
CPU	No CPU
Storage
Total Array Capacity	92 TB
Max Supported Capacity	737.28 TB
HDD Array External Interface	32Gb Fibre Channel
Power
Power Device	2 x internal power supply - hot-plug
Max Supported Qty	2
Power Redundancy	Yes
Power Redundancy Scheme	1+1
Voltage Required	AC 100-240 V 50/60 Hz
Power Provided	580 Watt
Environmental Parameters
Min Operating Temperature	41 °F
Max Operating Temperature	104 °F
Humidity Range Operating	Up to 85% RH
Storage Controller
Type	RAID (32Gb Fibre Channel)
Installed Qty	2
Interface Type	SAS 12Gb/s
Data Transfer Rate	1.2 GBps
RAID Level	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, MSA-DP+
System Requirements
OS Required	Microsoft Windows Server, VMware vSphere, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, Citrix Hypervisor, Citrix XenServer
Storage Controller (2nd)
Installed Qty	2
Hard Drive
Type	SSD
Capacity	12 x 7.68 TB
Interface Type	SAS 12Gb/s
Dimensions & Weight
Width	17.5 in
Depth	20 in
Height	3.5 in
Environmental Standards
ENERGY STAR Certified	Yes
Chassis
Installed Devices / Modules Qty	12
Supported Devices / Modules Qty	24
Supported Drives	SAS-3
