Main Specifications
|
|---|
|
Product Description
|

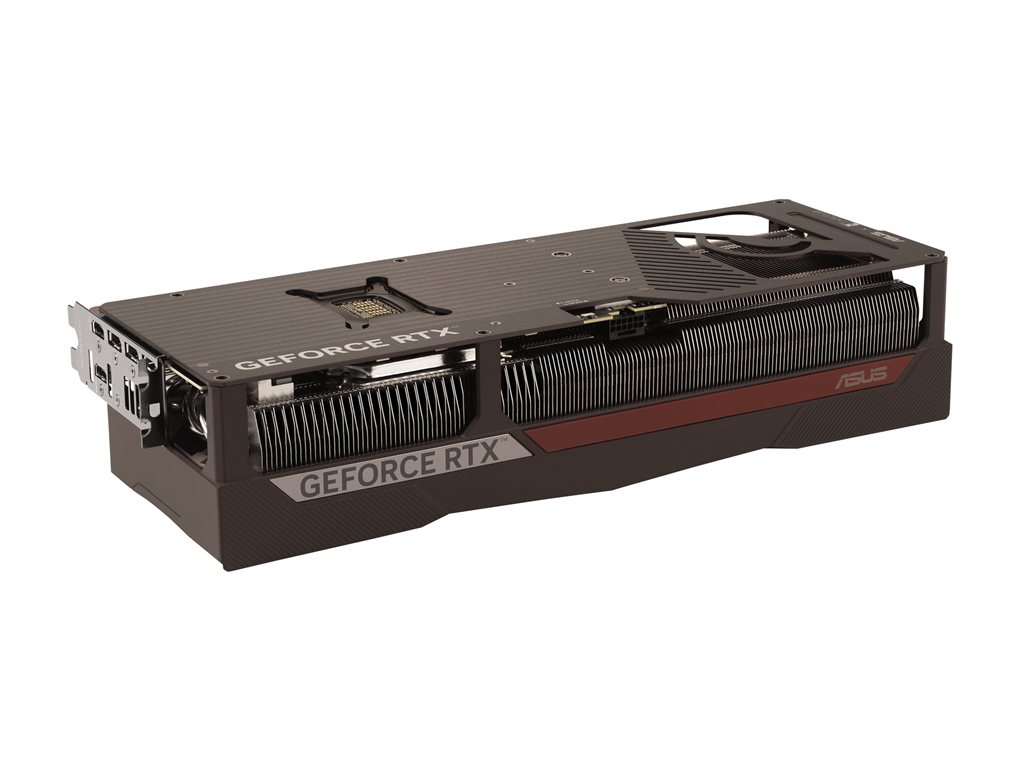

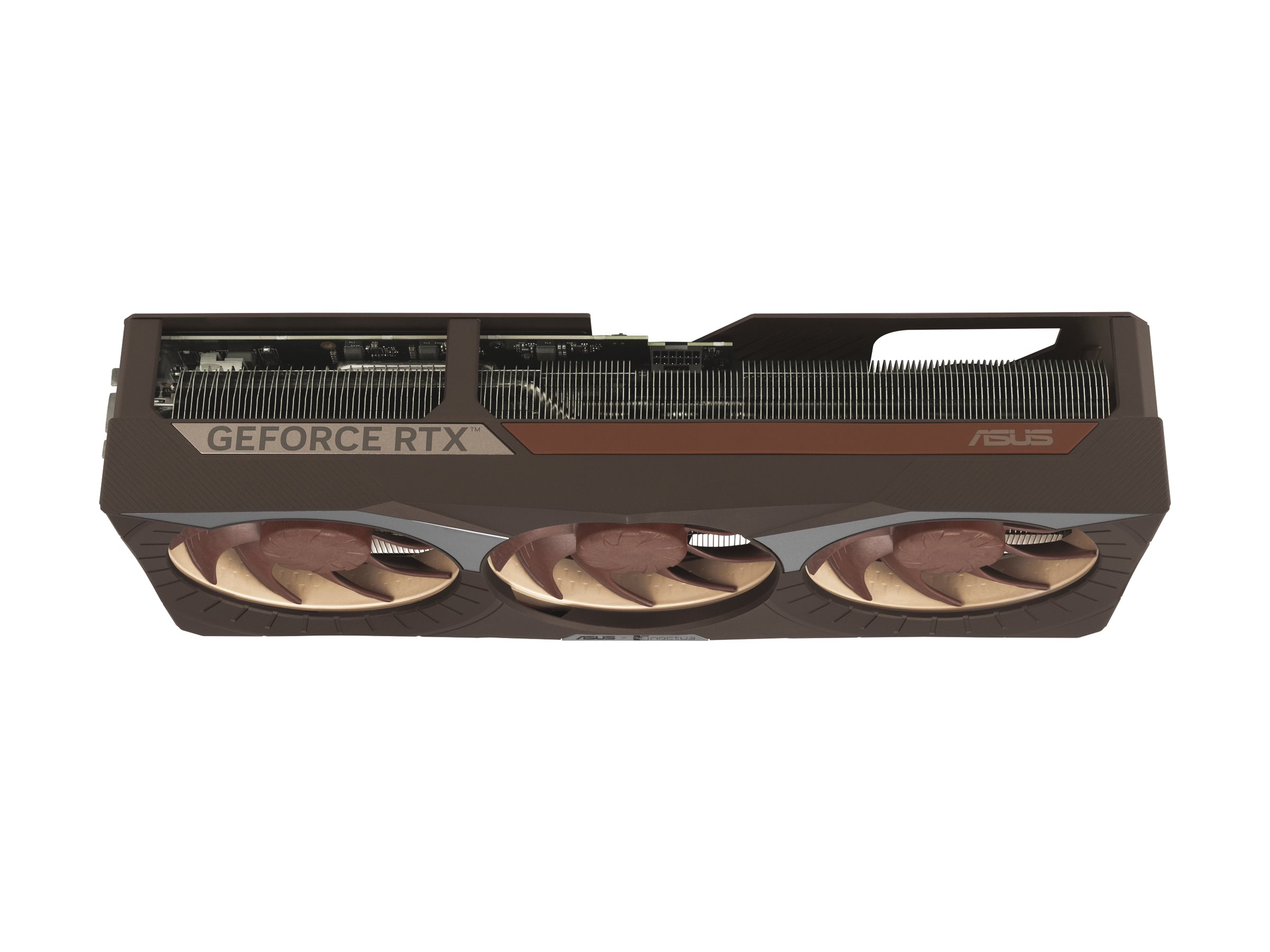

ASUS - Noctua OC Edition - graphics card - GeForce RTX 5080 - 16 GB
|
|
Device Type
|
Graphics card
|
|
Bus Type
|
PCI Express 5.0
|
|
Graphics Engine
|
NVIDIA GeForce RTX 5080 - up to 1801 TOPS
|
|
Memory
|
16 GB GDDR7
|
|
Memory Speed
|
30 Gbps
|
|
Boost Clock
|
2700 MHz
|
|
Boost Clock (OC)
|
2730 MHz
|
|
CUDA Cores
|
10752
|
|
Memory Interface
|
256-bit
|
|
Max Resolution
|
7680 x 4320
|
|
Max Monitors Supported
|
4
|
|
Interfaces Details
|
3 x DisplayPort ¦ 2 x HDMI
|
|
API Supported
|
OpenGL 4.6
|
|
Dimensions (WxDxH)
|
3.1 in x 15.2 in x 5.9 in
|
|
Package Type
|
Box
|
|
General
|
|---|
|
Device Type
|
Graphics card
|
|
Bus Type
|
PCI Express 5.0
|
|
Graphics Engine
|
NVIDIA GeForce RTX 5080
|
|
Boost Clock
|
2700 MHz
|
|
Boost Clock (OC)
|
2730 MHz
|
|
CUDA Cores
|
10752
|
|
VR Ready
|
Yes
|
|
Max Resolution
|
7680 x 4320
|
|
Max Monitors Supported
|
4
|
|
Interfaces Details
|
3 x DisplayPort ¦ 2 x HDMI
|
|
API Supported
|
OpenGL 4.6
|
|
Features
|
Triple Fan Design, 4-slot Fan Cooler, NVIDIA Blackwell GPU architecture, 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA DLSS 4, NVIDIA Reflex 2, NVIDIA Avatar Cloud Engine (ACE), NVIDIA Frame Warp, NVIDIA Multi Frame Generation, Nvidia Broadcast, NVIDIA G-Sync ready, 9th Gen NVIDIA Encoder, 0dB Technology, Dual Bios, phase-change thermal pad, Vapor chamber cooling technology, 3 x Noctua NF-A12x25 G2 PWM 120 fans, Sterrox liquid-crystal polymer (LCP), vented backplate, MaxContact technology, ASUS GPU Guard, metal backplate, stainless steel mounting bracket, AUTO-EXTREME technology, HDCP
|
|
Memory
|
|---|
|
Size
|
16 GB
|
|
Technology
|
GDDR7 SDRAM
|
|
Memory Speed
|
30 Gbps
|
|
Bus Width
|
256-bit
|
|
Miscellaneous
|
|---|
|
Included Accessories
|
Graphics card holder, hook-and-loop fastener, 16-pin to 3x 8-pin cable adapter, thank you card
|
|
Software Included
|
ASUS GPU Tweak III, MuseTree, GeForce Game Ready Drivers, NVIDIA Studio drivers, NVIDIA App, Adobe Creative Cloud (1 month membership)
|
|
Compliant Standards
|
HDCP 2.3, DisplayPort 2.1b
|
|
Width
|
3.1 in
|
|
Depth
|
15.2 in
|
|
Height
|
5.9 in
|
|
Package Details
|
Box
|
|
System Requirements
|
|---|
|
Required Power Supply
|
850 W
|
|
Additional Requirements
|
16 pin PCI Express power connector
|
|
Performance
|
|---|
|
NPU Performance Up To (TOPS)
|
1801 TOPS
|
